Upstash

A local Upstash: Redis over Upstash's REST API, the one the unmodified @upstash/redis and @upstash/ratelimit call (https://<endpoint>.upstash.io, this unit), the console where a database and QStash's credentials are made (console.upstash.com, the api/ lane, beside the Developer API's spec), and QStash with Workflow (https://qstash[-<region>].upstash.io, the qstash/ lane), over one vendor state.

Use with an existing app

Use Node 22.6 or newer.

For an app using the supported Redis REST or QStash workflows, install the exact release:

npm install --save-dev --save-exact @volter/world@3.0.147 @volter/twin-upstash@1.0.2
./node_modules/.bin/volter world init --name my-app --twins upstash --source upstash=@volter/twin-upstash

Run the local executable from this app’s folder; if it is missing, complete the installation here before continuing.

Review the detected vendor and generated bindings before booting. The World supplies throwaway credentials; seed stored data through the unchanged vendor SDK, then run your app's existing test command inside the World.

./node_modules/.bin/volter world up
./node_modules/.bin/volter world run -- npm test
./node_modules/.bin/volter world log
./node_modules/.bin/volter world down

Use your app's test command in place of npm test. Ordinary down retains state for the next up.

A Protocol 3 pack (publisher guide). The Redis unit's surface is Redis's command table (spec/commands), and its front (src/semantics/around.ts) reads Upstash's REST forms and runs the commands with the kernel's Redis core under Upstash's dialect (src/semantics/shared.ts). Each lane's surface is generated from its own spec, with handlers in <lane>/src/semantics/<family>.ts and state machines in <lane>/src/semantics/states.ts.

world-upstash serve [--port N] [--root DIR] [--read-only]

The World's Upstash

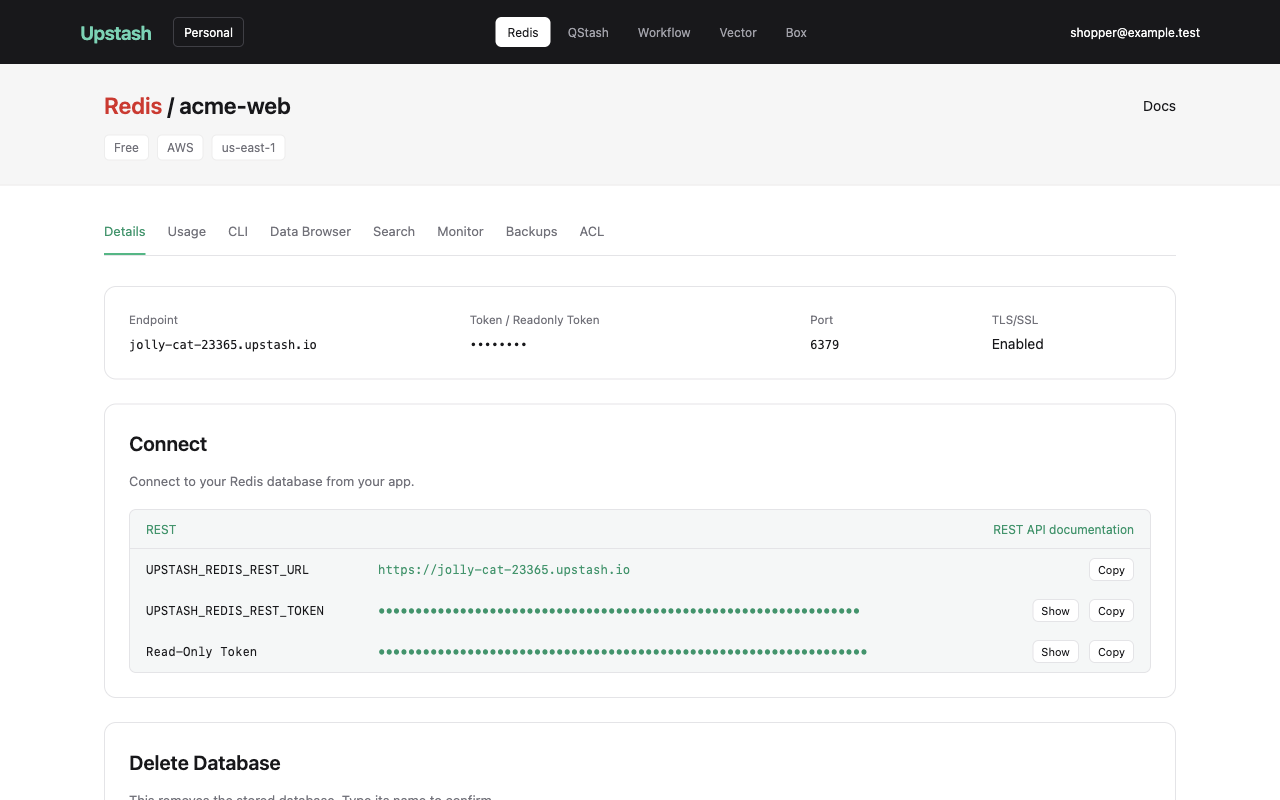

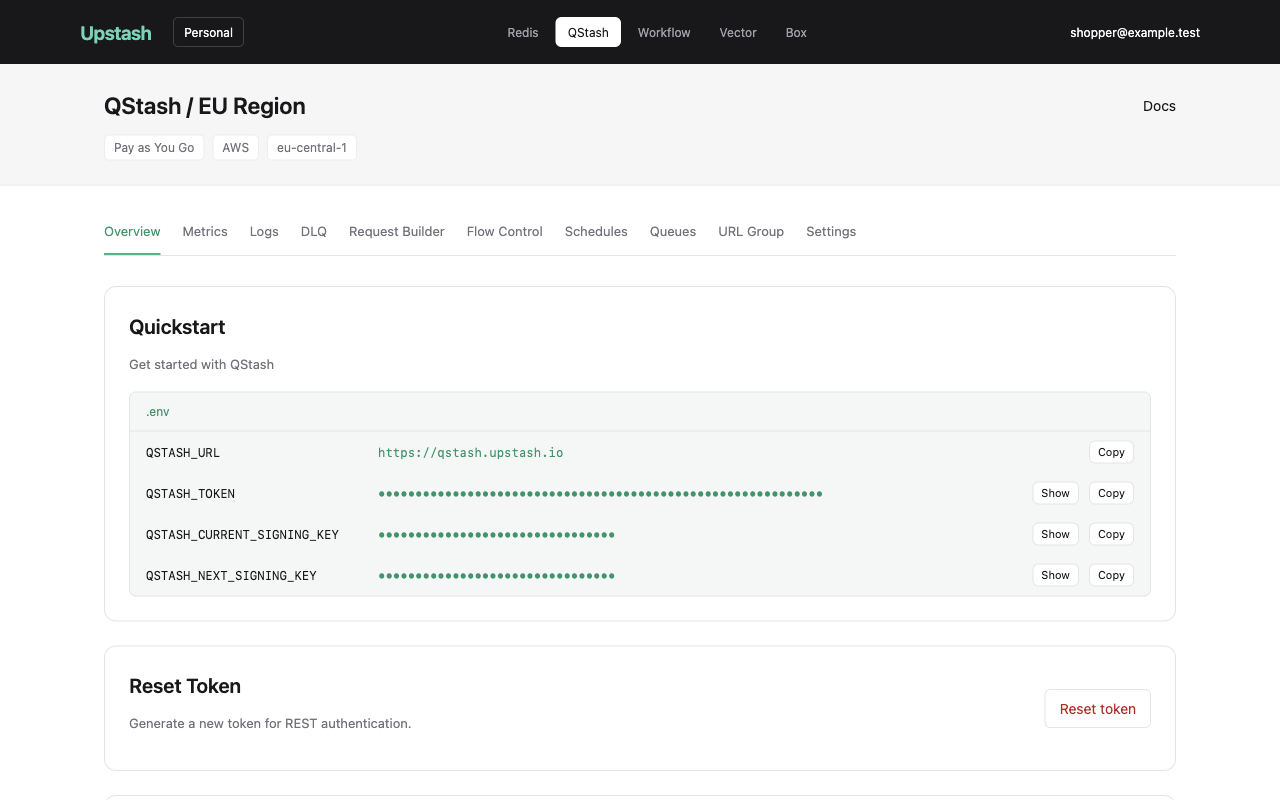

A person signs in to the console and creates a Redis database there (name, primary region, the free plan). The database's page shows UPSTASH_REDIS_REST_URL, UPSTASH_REDIS_REST_TOKEN and the Read Only token. On a first visit to QStash they pick a region; the page then shows QSTASH_URL, QSTASH_TOKEN and the two signing keys, and can reset the token and roll the keys. The Redis console has the vendor product navigation, a Create Database dialog and database Details/Connect sections. Redis Usage, CLI, Data Browser, Search, Monitor, Backups, ACL and paid/read-region controls remain unavailable; no usage metrics are fabricated. QStash uses the same product navigation and an Overview with masked Quickstart credentials, a token reset confirmation and signing-key rotation. QStash message, usage and cost charts and unserved navigation are unavailable; its read-only-token switch is not reproduced.

What it models

• Redis over REST: a command in the path (/set/foo/bar, a POST body as its last argument) or the body (["SET", "foo", "bar"]), /pipeline and /multi-exec, {result} / {error}, Upstash-Encoding: base64, Upstash-Response-Format: resp2 (RESP2 bytes, but at /multi-exec), and a database's Standard and Read Only tokens (the Read Only one refuses writes, SCAN and KEYS).
• Redis's semantics are the kernel's (@volter/world-core/redis), for the commands Dub sends and the life sends (src/semantics/shared.ts, SERVED): SET, GET, GETDEL, DEL, EXISTS, EXPIRE, PEXPIRE, INCR, INCRBY, RENAME; HSET, HSETNX, HGET, HGETALL, HMGET, HDEL, HINCRBY; LPUSH, RPUSH, LPOP, LRANGE; SADD, SREM, SMEMBERS, SISMEMBER, SMISMEMBER; ZINCRBY, ZRANGE; XADD, XRANGE, XREVRANGE, XDEL; SCAN; EVAL and EVALSHA running the script's Lua (@upstash/ratelimit's windows verbatim). Every other command is refused as Upstash refuses one it does not have, in a request or a script.
• Lua script flags: no-writes prevents script mutations. allow-key-locking restricts commands to declared Redis hash tags, including dynamic keys sharing those tags; scripts in /multi-exec use the vendor's transaction exception. Script hashes include the header. Other flags, database-wide reads under key locking, and Search-index locking are not modeled; this does not simulate parallel scheduling.
• QStash:
  • Publishing: publish with method, timeout, delay, not-before, retries, deduplication (ten minutes), flow control's keyed rate, period and parallelism (a key alone keeps its limits), durations as <number><unit> or compound (1d1h30m), retry-delay expressions, comma-separated labels, callbacks and failure callbacks, each configured by its own Upstash-Callback-* / Upstash-Failure-Callback-* options; batch; enqueue into a queue, and a queue's upsert; the token as a bearer header or qstash_token. A destination that is not a URL is a URL Group the account does not hold (404).
  • Messages: a message's read with configured body/header redaction; cancellation by message ids, filters, or all pending messages in the account. Redaction preserves the original payload for delivery.
  • Delivery: each message is delivered when due, signed (Upstash-Signature, HS256 with the current key), and retried on QStash's backoff, each attempt waiting at most its timeout (the account's Pay as you go plan's two hours, which an Upstash-Timeout only shortens). Once out of retries, or answered 489 with Upstash-NonRetryable-Error: true, it goes to the DLQ and its failure callback is called. A queue delivers in order, as many at a time as its parallelism; the attempts due at one instant are sent at once, and a call holds its key's slot until its answer arrives.
• Workflow: a run is started by its first invocation, and each later call carries the run's steps so far. It ends when serve() ends it or when it is cancelled; when a step is out of retries it fails.

Doors

• POST /_twin/users/{email} {password} (console.upstash.com): a person who can sign in.
• POST /_twin/app-credentials {owner?} (console.upstash.com): a World application's database and QStash credentials, as the runtime issues them (the descriptor's credential door).
• POST /_twin/destinations {url, status, headers?, body?, takes?, when?} (QStash): how an application the World does not run answers at a URL, and after how long on the World's clock.
• GET /_twin/deliveries?to=<url>[&run=<id>][&message=<id>] (QStash): every request QStash made there, with its answer's status once it arrived, or what was missed (timeout, unreachable).

Who it is for

Dub, as it ships (journeys/demand.json): its Redis caches, locks, streams and imports, its rate limits, its QStash jobs, queues and Workflow runs, and the deliveries its routes verify. Rallly and Cal.com use Upstash Redis only when their variables are set. The life (journeys/customer-life.json) is one studio's quarter on one account: Kiln on Redis, Looplinks on QStash and Workflow.

Not yet

• The Developer API (api.upstash.com/v2): no application calls it; the console makes what they use.
• QStash's schedules, URL groups, the DLQ's API, waiting for events, flow control's management API; a message read only while it is delivered or retried, as QStash keeps it.
• Every Redis command no demand or life sends (Upstash's table holds 248).
• Upstash Vector (Dub's docs embeddings): another product with its own wire.
